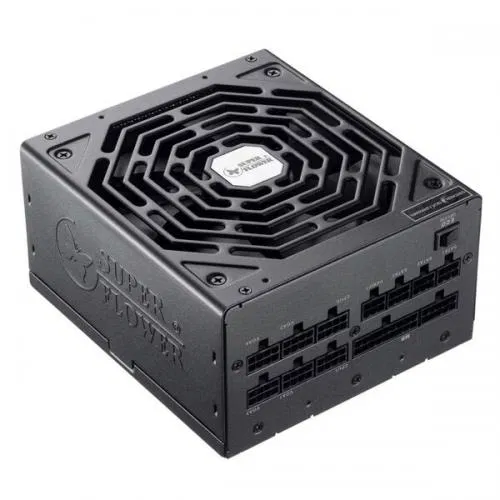

The Super Flower Leadex Platinum SE 1200W power supply is designed for high-performance systems, offering excellent efficiency and reliability. It features a fully modular cable design, which enhances cable management and improves airflow within the case.
-
: Certified with 80 PLUS Platinum, ensuring high efficiency levels of up to 90% at 20% load, 92% at 50%, and 89% at full load.
-
: Fully modular design allows for easy cable management and improved airflow within the case.
-
: Equipped with a silent operation fan; specifically, it uses a "14cm two-way thermal control intelligent cooling fan" or more commonly described as a "140mm Dual Ball Bearing Silent Fan".
| Model No. | SF-1200F14MP |
|---|---|
| Wattage | 1200W |
| AC Input | 100V−240V @ 60/50Hz |
| Dimensions | 180mm×150mm×86mm |
Includes over-voltage protection (OVP), over-current protection (OCP), dual over-power protection (OPP), short circuit protection (SCP), under-voltage protection (UVP), over-temperature protection (OTP), no-load operation (NLO), surge & inrush current protections.
Complies with various safety standards such as cTÜVus/TÜV/CB/CE/FCC/RCM/BSMI/RoHS/KCC/EAC.
This power supply supports NVIDIA SLI or ATI CrossFireX setups for multi-GPU configurations. It uses Japanese capacitors rated at 105°C to ensure durability under heavy loads. The warranty period varies; some retailers offer up to 10 years of coverage6, while others list it as 3 years12.
Suitable for professional PC systems requiring stable power output under demanding conditions. Supports all Intel / AMD multi-core CPUs and is compatible with ATX / BTX motherboards.
Overall, the Super Flower Leadex Platinum SE offers excellent performance suitable for gaming systems or professional workstations that require efficient power delivery without compromising on build quality or safety features.
The PSU includes detachable cables such as:
-
One main connector: 20+4 pin ATX (600 mm)
-
Two CPU connectors: 4+4 pin EPS (750 mm each)
-
Four PCI-E connectors: 6+2 pin (750 mm each)
It also supports multiple SATA devices along with peripherals like Molex connectors
